The PRL-444RS is a 4 Channel TTL to RS422 translator module, available with either SMA or RJ45 I/O connectors.
The input resistance of the PRL-444RS inputs can be selected to be either 50 Ω or 1 kΩ by a common toggle switch. The 1 kΩ inputs are desirable when interfacing with low power circuits.
The four pairs of complementary outputs are designed for driving floating 124 Ω loads, normally the configuration used in RS422 input circuits. The output swing is typically 1.40 V with a common mode voltage of 1.5 V.
All I/Os are DC coupled. A block diagram showing the equivalent input and output circuits of the PRL-444RS-SMA is shown in Fig. 1.

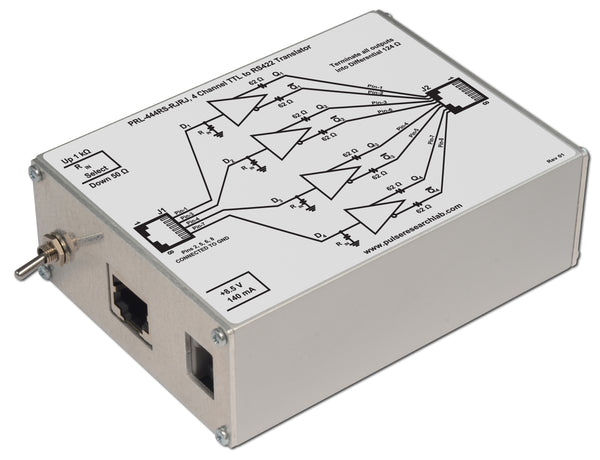

The PRL-444RS-SMA is housed in a 1.3 x 2.9 x 2.9-in. extruded aluminum enclosure with SMA I/Os, while the The PRL-444RS-RJRJ is housed in a 1.3 x 2.9 x 3.9-in. enclosure with RJ45 I/Os. Both are supplied with a ±9.0 V/±1.7 A AC/DC Adapter. A future model is planned with SMA inputs and RJ45 outputs (PRL-444RS-SRJ), although no availability date is guaranteed at this time.
The PRL-444RS may also be ordered without the power supply as by appending "-OEM," e.g. PRL-444RS-SMA-OEM. A maximum of four units can share the included AC/DC adapter using additional units of cable #88000102-4. If mounting is desired, a pair of the #35001420 mounting brackets can accommodate any two PRL modules of the same length.
A complementary product, the PRL-425QRT, performs the opposite conversion of 4 RS422 signals to 4 TTL signals.
PRELIMINARY SPECIFICATIONS: (0° C ≤ TA ≤ 35° C)*
|VIL||TTL input Low Level||-0.5||0.0||0.5||V|
|VIH||TTL input High Level||2.0||2.4||5.0||V|
|VDC||DC Input Voltage||7.5||8.5||12.0||V|
|VAC1||AC/DC Adapter Input Voltage||103||115||254
|IDC1||DC Input Current @ 20 MHz||194||220
|IDC2||DC Input Current @ 40 MHz||290
|VOPP||Output Differential Voltage, peak-to-peak||1.40
|VCMO||Output Common mode voltage1||1.48||1.50
|tPLH||Propagation Delay to output ↑||TBD
|tPHL||Propagation Delay to output ↓||TBD
|tr/tf1||Rise/Fall Times (10%-90%)1||1.4||2.0
|fMAX||Max Clock Frequency||40
|tSKEW||Skew between any 2 rising edges||TBD||ps|
|tSKEW||Skew between any 2 rising/falling edges||250||ps|
|DTY||Duty Cycle @ 40 MHz||45/55|
|Size||1.3 x 2.9 x 2.9||in.|
