PRL-SWBOB, Micro D9/Spacewire Breakout Board

SKU:

$ 600.00

Applications:

  • Differential Probing of Spacewire Signals
  • Single-ended Probing of Spacewire Signals
  • Spacewire System Verification
  • Signal Injection for Test

Features:

  • Micro-D9 Plug and Micro-D9 Receptacle Connectors, Nickel-plated
  • Probe points on 0.1” Centers
  • Jackscrews for securing to panel. Use a 1/16" ball-head hex driver.

Description

The PRL-SWBOB is a passive, pass-through, signal breakout board for 4 differential 100 Ω signal pairs on Micro-D9 cabling, the configuration typically used in Spacewire applications:

Each PCB assembly consists of a Micro-D9 receptacle and a Micro-D9 plug, connected via a printed circuit board with matched-length, controlled impedance traces, and probe points available between differential signal pins and between signal pins and ground:

The PCB traces have controlled impedance of 50 , designed for carrying LVDS (or other differential signaling) to/from 100 twisted pairs. Traces on the PCBs are routed with inter-pair lengths matched to within 3 mm. Clock/Data pairs are matched to within 5 mm.

The PRL-SWBOB is passive, and no power is required. There are several configuration options available for the PRL-SWBOB series:

  1. Straight or Staggered PCB:
    1. The Straight PCB (-S) is suitable for standard Spacewire probing applications
    2. The Staggered PCB (-Z) is designed for use with the PRL-4530 Spacewire Signal Adapter assembly, where the tight spacing and “up” and “down” orientation of the Micro-D9 Spacewire receptacles requires the breakouts boards to have a horizontal offset in order to probe two adjacent connectors.
  2. Probe pin configuration:
    1. Probe pins installed on the component (connector) side (-CS).
    2. Probe pins installed on the solder side (-SS).
    3. No probe pins installed (-NP).

ORDERING INFORMATION:

Construct a part number by appending the desired PCB and Pin configurations, e.g. PRL-SWBOB-Z-CS defines a module with a staggered PCB and pins on the Component Side.

Part number suffix “-C00x” indicates a PRL-SWBOB assembly with a customer-specific silkscreen. Part numbers without a suffix are marked with generic Spacewire signal names.

Additional PCB shapes may be available by special order. Contact sales@pulseresearchlab.com for additional details.

A previous revision, P/Ns 56004785-CS and -SS, equivalent to PRL-SWBOB-Z-CS-C001 and –SS-C001 respectively, were assembled with cadmium-plated parts. They are functionally identical in all respects, but is no longer available. All future shipments will use nickel-plated parts.


Fig. 1, PRL-SWBOB-Z, Spacewire Breakout Board with Staggered PCB, Dimensions.

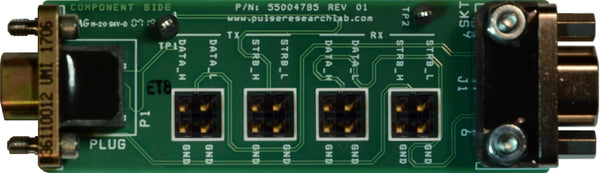

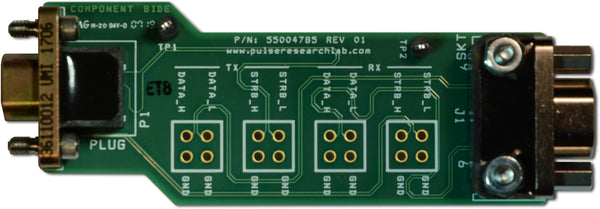

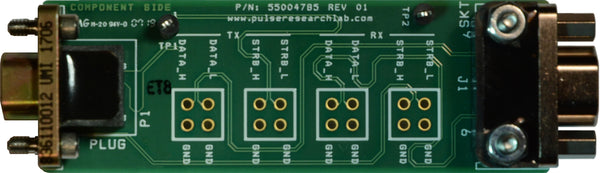

Fig. 2, PRL-SWBOB, Component-side Silkscreen.

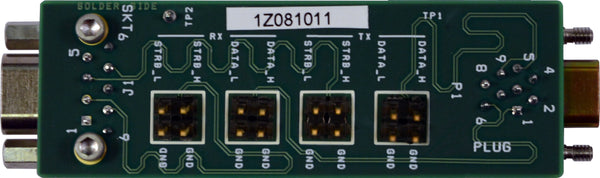

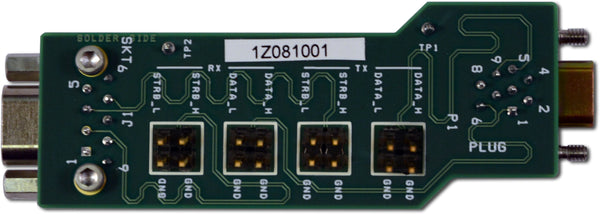

Fig. 3, PRL-SWBOB, Solder-side Silkscreen.

Input Conn. Input Pin Spacewire Signal Name Output Pin Output Conn.
J1 2 SIN+ 2 P1
J1 7 SIN- 7 P1
J1 3 GND 3 P1
J1 1 DIN+ 1 P1
J1 6 DIN- 6 P1
J1 8 SOUT+ 8 P1
J1 4 SOUT- 4 P1
J1 9 DOUT+ 9 P1
J1 5 DOUT- 5 P1

Fig. 4, PRL-SWBOB Pinout


Fig. 5, PRL-SWBOB-Z-CS and -SS, Attached to PRL-4530 Spacewire Panel

(0° C ≤ TA ≤ 35° C)*

Symbol Parameter PRL-SWBOB UNIT Notes
Min Typ Max
Z0 Characteristic Impedance 47 50 53 Ω Z0
  Micro-D Receptacle MBR-1-009-1B1 Or M83513/13A01NP
Micro-D Plug SD-836110012 Ulti-Mate
Probe Pin Spacing 0.1 in.
TPROP Propagation Delay 1 ns
TSKEW1 Intra-pair skew 3 mm
TSKEW2 Inter-pair skew, CLK/DATA 5 mm
tr/tf Rise/Fall Times (10%-90%) 1 ns
L Length 2.82 in. Including connectors
WS Width, straight PCB 0.84 in.
WZ Width, staggered PCB 0.99 in.
H Height 0.64 in. Including hardware
Weight 0.5 Oz.
